KG2 Thermistor
A highly reliable surface mount thermistor
- Metal electrodes for soldering
- Excellent solder wettability with tin-plated electrodes

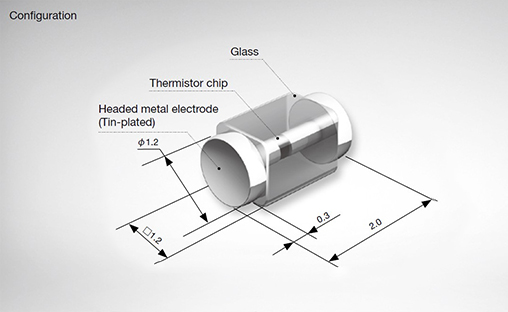

- High-level heat resistance and environmental stability secured by glass encapsulation
- Excellent solder dip resistance
- The square glass prevents deviation or falling off while being mounted
Features
| Applications |
Suitable to be used in a narrower space
|
|---|---|
| Operating temperature | -50 to +200℃ |
| Thermal time constant | Approx. 5 sec. |
| Dissipation constant | Approx. 1.3mW/℃ |
| Solder dip resistance | 3 sec. at 350℃ |
Note) Unless otherwise stated, all thermal time constants and dissipation constants are measured in still air.
Reliability data
Resistance-temperature characteristics
