PSB-S9 Thermistor
A micro-miniature thermistor with a super-fast response
  • product description
  • The most compact glass-encapsulated thermistor
  • Chip with gold electrodes
  • High-level heat resistance and environmental stability secured by glass encapsulation
  • Long-term stability in resistance
  • High-volume supply in high quality by integrated automatic production
  • Product Details
Applications

Suitable for medical and other equipment requiring a super-fast response, and also for test equipment for designing thermal components

  • Medical catheters
  • Fusers for copying machines and printers
  • Non-contact sensors
  • Test equipment requiring accurate measurements
Operating temperature -50 to +250℃
Thermal time constant Approx. 0.6 sec.
Dissipation constant Approx. 0.15mW/℃
Insulation resistance Min. 10MΩ at 50VDC

　Note) Unless otherwise stated, all thermal time constants and dissipation constants are measured in still air.

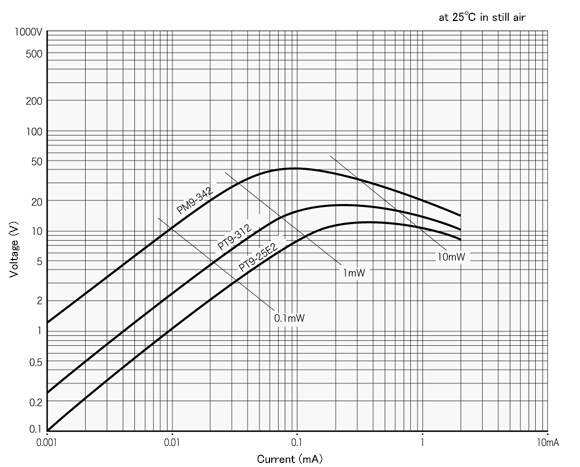

V-I characteristics
